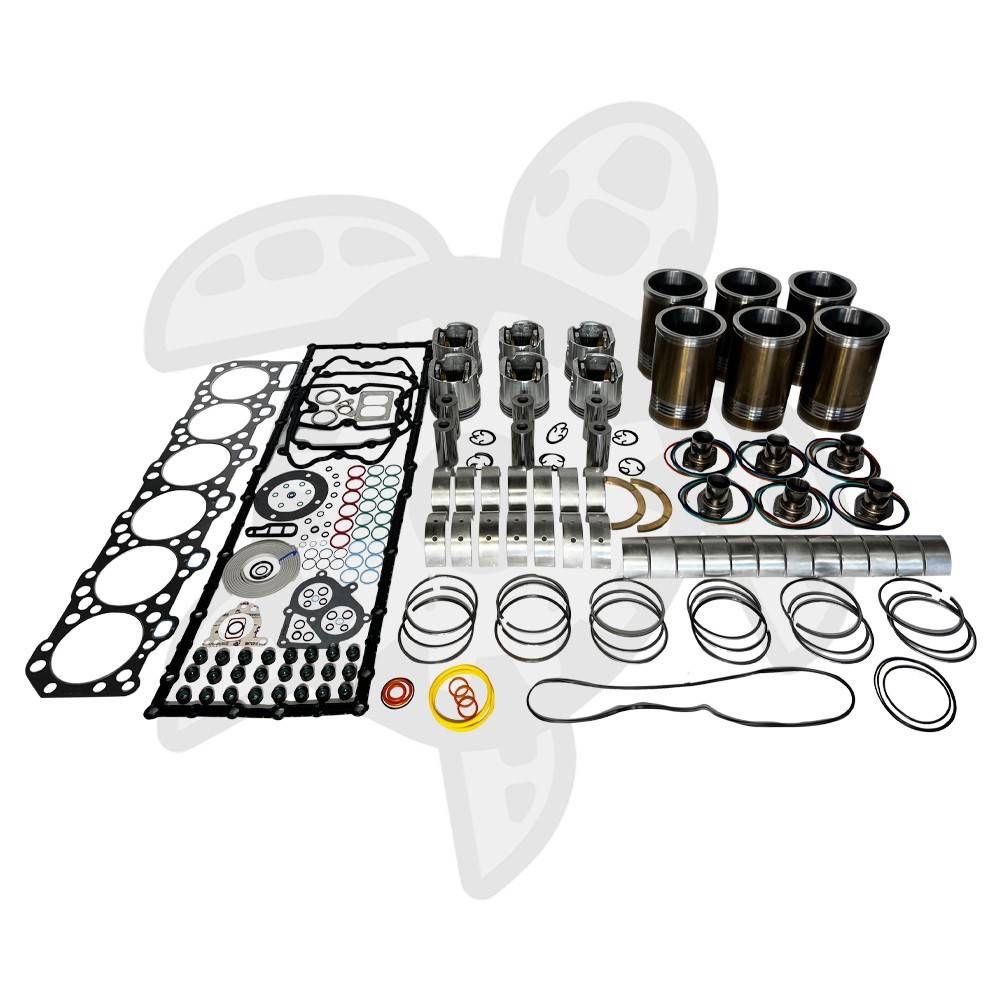

MCIF1807352 | Caterpillar 3406E Inframe Rebuild Kit (5EK, 6TS, 1LW, 2WS )
Engine Rebuild Kits
MCIF1807352
Kit - Inframe
Pricing:
$2,725.31
Description
Kit Contents:
- (6) Cylinder Kits
- (6) Piston Skirts
- (6) Single Cylinder Liner Gasket Sets
- (6) Cylinder O-Ring Seals
- (6) Cylinder O-Ring Seals
- (6) Cylinder O-Ring Seals
- (6) Liner Bands
- (6) Piston Pins
- (6) Piston Crowns
- (6) Cylinder Liners
- (12) Piston Pin Retainers
- (6) Piston Ring Sets
- (6) Top Piston Rings
- (6) Intermediate Piston Rings
- (6) Oil Piston Rings
- (2) Thrust Plates
- (7) Main Bearings
- (6) Rod Bearings
- (1) Upper Gasket Set In Chassis
- (1) Air Inlet Manifold Gasket
- (1) Seal
- (1) Regulator Gasket
- (1) O-Ring Seal
- (6) Exhaust Manifold Gaskets
- (1) O-Ring Seal
- (1) O-Ring Seal
- (1) O-Ring Seal
- (1) Integral Seal
- (6) Exhaust Manifold Gaskets
- (1) Regulator Gasket
- (1) Drain back Seal
- (24) Valve Stem Seals
- (6) O-Ring Seals
- (6) O-Ring Seals
- (1) Turbocharger Gasket
- (1) Cylinder Head Shim
- (6) O-Ring Seals
- (6) O-Ring Seals
- (3) Rocker Cover Seals
- (1) Gasket
- (1) General Use O-Ring Seal
- (6) O-Ring Seals
- (2) O-Ring Seals
- (1) Cylinder Head Gasket
- (1) General Use O-Ring Seal
- (24) Water Grommets
- (2) Thermostat Seals
- (2) General Use O-Ring Seals
- (2) One Piece Oil Pan Gaskets
- (1) Regulator Housing Gasket
- (1) O-Ring Seal
- (2) O-Ring Seals
- (1) 9MT Valve Cover Seal Stock
- (1) O/P O-Ring Seal
- (1) O/P O-Ring Seal
- (2) O-Ring Seals
- (1) O-Ring Seal
- (1) O-Ring Seal
- (1) Seal
- (1) O-Ring Seal
- (5) O-Ring Seals
- (1) O-Ring Seal
- (1) O-Ring Seal
- (2) O-Ring Seals
- (12) O-Ring Seals
- (1) O-Ring Seal
- (6) O-Ring Fuel Injector Seals
- (6) O-Ring Injector Tube Seals
- (1) Regulator Housing Gasket
OEM Cross-Reference:
- (6) Cylinder Kits, CK1807352P
- (6) Piston Skirts, 1326663, 132-6663
- (6) Single Cylinder Liner Gasket Sets, 5P8057, 5P-8057, 3863048, 386-3048, 2237195, 223-7195, 1768182, 176-8182, 1609874, 160-9874, 1183732, 118-3732
- (6) Cylinder O-Ring Seals, 6V5121, 3E6777, 2N6210, 1102220,110-2220
- (6) Cylinder O-Ring Seals, 1426217
- (6) Cylinder O-Ring Seals, 1427072
- (6) Liner Bands, 9L5854, 2W6134
- (6) Piston Pins, 7E1749, 7E-1749, 1687246, 168-7246, 1029796, 102-9796
- (6) Piston Crowns, PLG1807352, 2261969, 2243397, 2243374X, 224-3397, 1917854, 191-7854, 1807352, 180-7352, 1456744, 145-6744
- (6) Cylinder Liners,7W3550, 7W-3550, 7N0943, 7N-0943, 4N1627, 4N-1627, 2W6000, 2W-6000, 2382700, 238-2700, 1W6280, 1W-6280, 1979384, 1979322, 197-9384, 197-9322, 1599778, 159-9778
- (12) Piston Pin Retainers, 7E1177, 7E-1177, 2235511
- (6) Piston Ring Sets, RS3406E2
- (6) Top Piston Rings, 1777496, 177-7496, 1326662, 132-6662
- (6) Intermediate Piston Rings, 1765749, 176-5749, 1399126, 139-9126
- (6) Oil Piston Rings, 1899771, 189-9771, 1765750, 176-5750
- (2) Thrust Plates 3400, 7N8947, 7E9262, 4N0849, 2531752, 1W5252
- (7) Main Bearings, Std D3400, 8N5421, 6N8743, 6N3909,4W5492, 3215746, 3178766,2170390, 2110592, 1W6589, 1N3542, 1175975
- (6) Rod Bearings, Std, Grooved, 9Y7735G, 9Y7735, 3342670, 3285573,2170578, 1556633, 1548083, 1175973
- (1) Upper Gasket Set In Chassis:
- (1) Air Inlet Manifold Gasket, 9Y6186, 1548587,1013125
- (1) Seal, 1036045
- (1) Regulator Gasket, 3900941,1048585,104-8585
- (1) O-Ring Seal, 1090093, 109-0093
- (6) Exhaust Manifold Gaskets, 7C0324, 1095313, 1006175
- (1) O-Ring Seal, 112-5282, 1125282
- (1) O-Ring Seal, 1142687
- (1) O-Ring Seal, 1178801, 1G5763, 2U1635,9X7422
- (1) Integral Seal, 1262702
- (6) Exhaust Manifold Gaskets, 1299453, 138-4611, 1384611
- (1) Regulator Gasket, 1393550
- (1) Drainback Seal, 1422329
- (24) Valve Stem Seals, 1026229, 1632478, 1Y4025, B45978
- (6) O-Ring Seals, 1662903
- (6) O-Ring Seals, 1662904
- (1) Turbocharger Gasket, 1S4295, 3790175, 7H1558
- (1) Cylinder Head Shim, 1339827, 1805734, 2271204
- (6) O-Ring Seals, 2303728, 9X7418
- (6) O-Ring Seals, 2303775, 9X7419
- (3) Rocker Cover Seals, 1728027,2429537
- (1) Gasket, 2A3398, 6K5551
- (1) General Use O-Ring Seal, 2M9780, 3J3918, 5L4014, 7M5899,7M9899
- (6) O-Ring Seals, 329313
- (2) O-Ring Seals, 033-6042, 336042
- (1) Cylinder Head Gasket, 1539653,2245122, 2245122SP, 3590908, 54643, 6I4420
- (1) General Use O-Ring Seal, 3D2824, 3K6850
- (24) Water Grommets, 3E6722, 3E6772-24, 4N2269, 4W1055,7C9912
- (2) Thermostat Seals, 3S9643, 4L8098
- (2) General Use O-Ring Seals, 4F7390, 7F9893, 1076857, 785404, 8T7201
- (2) One Piece Oil Pan Gaskets, 1880210, 3535065, 4N1151-6
- (1) Regulator Housing Gasket, 4N1156
- (1) O-Ring Seal, 5E8771
- (2) O-Ring Seals, 5H7704, 6L8166, 7M2089, 8T7146
- (1) 9MT Valve Cover Seal Stock, 5P5678-9
- (1) O/P O-Ring Seal, 5P5846
- (1) O/P O-Ring Seal, 5P8068
- (2) O-Ring Seals, 5P0840, 5P840
- (1) O-Ring Seal, 6J2245, 7L2177, 8T7291
- (1) O-Ring Seal, 6V1197
- (1) Seal, 6V0128, 6V128
- (1) O-Ring Seal, 1887535, 6V5048, 9X0934
- (5) O-Ring Seals, 1534906, 2147568, 6V5049
- (1) O-Ring Seal, 6V5100
- (1) O-Ring Seal, 6V6609
- (2) O-Ring Seals, 7C0031
- (12) O-Ring Seals, 6L9795, 8L2777
- (1) O-Ring Seal, 627822, 6L9776, 775538,7L6385, 8L2786
- (6) O-Ring Fuel Injector Seals, 6I1420, 9X7317
- (6) O-Ring Injector Tube Seals, 9X7430
- (1) Regulator Housing Gasket, 9Y2588
Details
- MCIF1807352
- MCIF1807352
- Caterpillar
- New
Categories
Shipping Information
- Item Requires Shipping
- 250.0 lbs.
- W42.0000” x H24.0000” x L48.0000”
- FREE SHIPPING for orders above $2000.00
