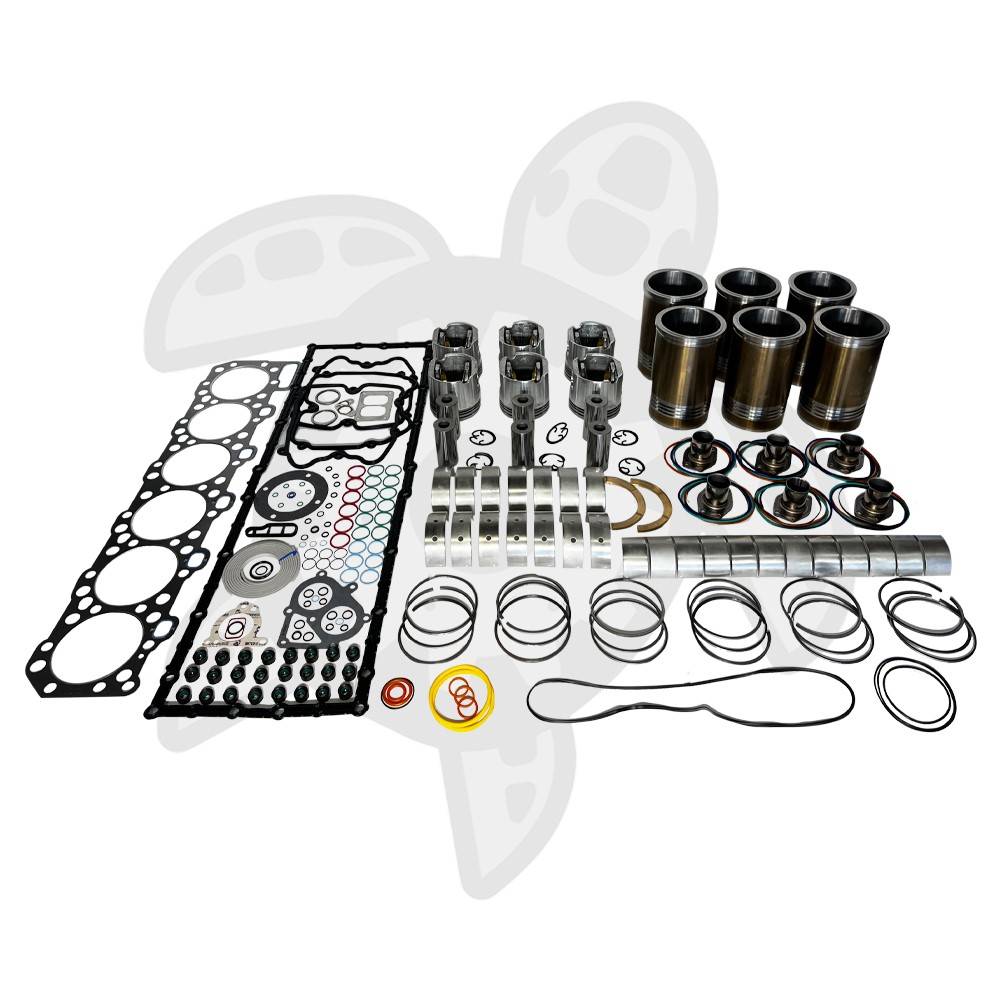

MCIF7C2888 | Caterpillar 3406E Inframe Rebuild Kit 5EK, 6TS, 1LW, 2WS, 1MM

• (2) Thrust Plates
• (6) Rod Bearings
• (7) Main Bearings
• (6) Cylinder Kits
• (6) Piston Ring Set
• (6) Top Piston Rings
• (6) Oil Piston Rings
• (6) Piston Intermediate Rings
• (6) Piston Skirts
• (6) Single Cylinder Liner Gasket Sets
• (6) Liner Bands
• (6) Cylinder Liner O-Ring Seals
• (6) Cylinder Liner O-Ring Seals
• (6) Cylinder Liner O-Ring Seals
• (6) Piston Pins
• (6) Cylinder Liners
• (6) Piston Crowns
• (12) Piston Pin Retainers
• (1) In-Chassis Gasket Set
• (1) Air Inlet Manifold Gasket
• (1) Seal
• (1) Regulator Gasket
• (1) O-Ring Seal
• (6) Exhaust Manifold Gaskets
• (2) O-Ring Seals
• (1) O-Ring Seal
• (2) O-Ring Seals
• (1) O-Ring Seal
• (1) Integral Seal
• (1) Integral Seal
• (6) Exhaust Manifold Gaskets
• (1) Regulator Gasket
• (1) Drain back Seal
• (24) Valve Stem Seals
• (6) O-Ring Seals
• (6) O-Ring Seals
• (6) O-Ring Seals
• (1) Turbocharger Gasket
• (1) Cylinder Head Shim
• (6) O-Ring Seals
• (6) O-Ring Seals
• (1) General Use O-Ring Seal
• (6) O-Ring Seals
• (9) O-Ring Seals
• (1) Cylinder Head Gasket
• (1) General Use O-Ring Seal
• (24) Water Grommets
• (2) Thermostat Seals
• (2) General Use O-Ring Seals
• (2) One Piece Oil Pan Gaskets
• (1) Regulator Housing Gasket
• (1) O-Ring Seal
• (2) O-Ring Seals
• (1) Valve Cover 9MT Seal Stock
• (1) O/P O-Ring Seal
• (1) O/P O-Ring Seal
• (2) O-Ring Seals
• (3) O-Ring Seals
• (2) O-Ring Seals
• (1) O-Ring Seal
• (1) Seal
• (1) O-Ring Seal
• (8) O-Ring Seals
• (1) O-Ring Seal
• (2) O-Ring Seals
• (1) O-Ring Seal
• (1) O-Ring Seal
• (2) O-Ring Seals
• (12) O-Ring Seals
• (2) O-Ring Seals
• (6) O-Ring Fuel Injector Seals
• (6) Injector Tube O-Ring Seals
• (1) Regulator Housing Gasket

OEM Cross-Reference:

• (2) Thrust Plates, 2531752, 7E9262, 4N0849, 2531752, 1W5252
• (6) Rod Bearings, 9Y7735G, 9Y7735, 3342670, 3285573,2170578, 1556633, 1548083, 1175973
• (7) Main Bearings, 8N5421, 6N8743, 6N3909, 4W5492, 3215746, 3178766, 2170390, 2110592, 1W6589, 1N3542, 1175975
• (6) Cylinder Kits, CK7C2888P
• (6) Piston Ring Set, S41890, RS3406E, 7C8936, 1W8922, 1343761RS
• (6) Top Piston Rings, 2W1521, 1W9460, 1W8900, 1365203,1343761, 1029798
• (6) Oil Piston Rings, 7N7078, 4N5692, 1P8474
• (6) Piston Intermediate Rings, 2P2817
• (6) Piston Skirts, 7C2898, 2261995, 2243346X, 1300241,1282830
• (6) Single Cylinder Liner Gasket Sets, 5P8057, 3863048, 2237195, 1768182, 1609874, 1183732
• (6) Liner Bands, 2W6134, 9L5854
• (6) Cylinder Liner O-Ring Seals, 6V5121, 3E6777, 2N6210, 1102220, 110-2220
• (6) Cylinder Liner O-Ring Seals, 1426217
• (6) Cylinder Liner O-Ring Seals, 1427072
• (6) Piston Pins, 7E1749, 1687246, 102-9796
• (6) Cylinder Liners, 7W3550, 7N0943, 4N1627, 2W6000, 2382700, 1W6280, 1979384, 1979322, 1599778
• (6) Piston Crowns, PLG7C2888, 7C2888, 2261973, 2261970, 2243400, 2243398, 2243378X, 2243375X, 1352837, 0R8333, 0R4487
• (12) Piston Pin Retainers, 2235511, 7E1177
• (1) In-Chassis Gasket Set, (NO OEMS)
• (1) Air Inlet Manifold Gasket, 9Y6186, 1548587, 1013125
• (1) Seal, 1036045
• (1) Regulator Gasket, 3900941, 1048585, 104-8585
• (1) O-Ring Seal, 1090093, 109-0093
• (6) Exhaust Manifold Gaskets, 7C0324, 1095313, 1006175
• (2) O-Ring Seals,1125282, 112-5282
• (1) O-Ring Seal, 1142687
• (2) O-Ring Seals, 1144427
• (1) O-Ring Seal, 9X7422, 2U1635, 1G5763, 1178801
• (1) Integral Seal, 1262702
• (1) Integral Seal, 1262704, 1986068
• (6) Exhaust Manifold Gaskets, 1384611, 1299453
• (1) Regulator Gasket, 1393550
• (1) Drainback Seal, 1422329
• (24) Valve Stem Seals, B45978, 1Y4025, 1632478, 1026229
• (6) O-Ring Seals, 1662903
• (6) O-Ring Seals, 1662904
• (6) O-Ring Seals, 8U2089, 870356, 814024, 785391, 778343, 778246, 536959, 4F1466, 3D5923, 2R2668, 2H2836, 1H1023, 1318659, 1273286, 0A4110, 067622, 062677
• (1) Turbocharger Gasket, 3790175, 7H1558, 1S4295
• (1) Cylinder Head Shim, 2271204, 1805734, 1357413, 1339827
• (6) O-Ring Seals, 2303728, 9X7418
• (6) O-Ring Seals, 9X7419, 2303775
• (1) General Use O-Ring Seal, 9G5090,981186,951760,951755, 938332, 833394, 816459, 7X6614, 7Q8497, 7M9899, 7M5899, 780691, 776168, 774467,773654,773584,773234, 5L4014, 3J3918, 307918, 304007, 2M9780, 1G7652, 058159,0044582
• (6) O-Ring Seals, 616325, 329313
• (9) O-Ring Seals, 0336042, 033-6042
• (1) Cylinder Head Gasket, 6I4420, 54643, 3590908, 2245122SP, 2245122, 2066954, 1539653
• (1) General Use O-Ring Seal, 952720, 8U0222, 7X5427, 773175, 3K6850, 3D2824, 306805, 1C3804, 065062, 056504, 045005, 043919
• (24) Water Grommets, 7C9912, 4W1055, 4N2269, 3E6772-24, 3E6722
• (2) Thermostat Seals, 4L8098, 3S9643
• (2) General Use O-Ring Seals, 8T7201, 7F9893, 785404, 4F7390, 1076857
• (2) One Piece Oil Pan Gaskets, 1880210, 3535065, 4N1151-6
• (1) Regulator Housing Gasket, 4N1156
• (1) O-Ring Seal, 5E8771
• (2) O-Ring Seals, 5H7704, 6L8166, 7M2089, 8T7146
• (1) Valve Cover 9MT Seal Stock, 5P5678-9
• (1) O/P O-Ring Seal, 5P5846
• (1) O/P O-Ring Seal, 5P8068
• (2) O-Ring Seals, 5P840, 5P0840
• (3) O-Ring Seals, 619458, 7L2178
• (2) O-Ring Seals, 6J2245, 7L2177, 8T7291
• (1) O-Ring Seal, 6V1197
• (1) Seal, 6V0128, 6V128
• (1) O-Ring Seal, 9X0934, 6V5048, 1887535
• (8) O-Ring Seals, 6V5049, 2147568, 1534906
• (1) O-Ring Seal, 6V5100
• (2) O-Ring Seals, 6V5266
• (1) O-Ring Seal, 6V6228, 1803926
• (1) O-Ring Seal, 6V6609
• (2) O-Ring Seals, 7C0031
• (12) O-Ring Seals, 8L2777, 6L9795
• (2) O-Ring Seals,8L2786, 7L6385, 775538, 6L9776, 627822
• (6) O-Ring Fuel Injector Seals, 9X7317, 6I1420
• (6) Injector Tube O-Ring Seals, 9X7430
• (1) Regulator Housing Gasket, 9Y2588
