M-2516361C91 | Inframe Rebuild Kit for Navistar DT466, New 2004 - 2006

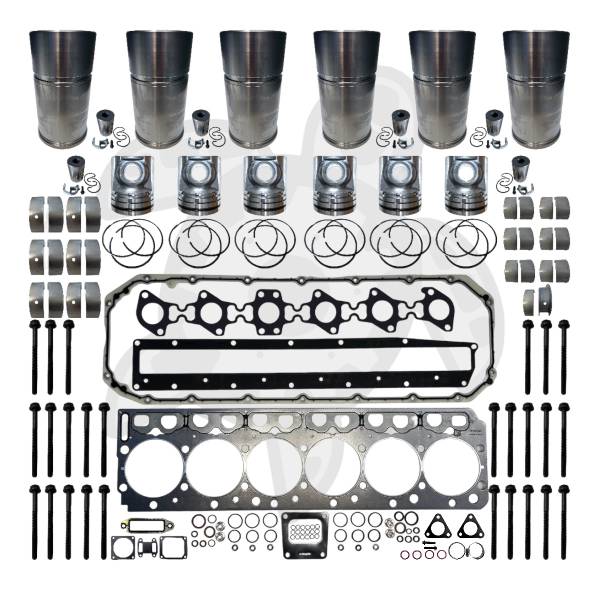

Kit Contents:


• (1) Oil Pan Gasket
• (1) Oil Suction Gasket
• (1) EGR Mixer Gasket Set
  • (1) Inlet Adapter Gasket
  • (1) Inlet EGR Gasket
  • (1) Inlet EGR Gasket
  • (1) Inlet Adapter Gasket
• (1) Oil Cooler Gasket Set
  • (1) Inlet EGR Gasket
  • (1) EGR Tube/Valve Gasket
  • (2) EGR Mount Bolts
  • (4) Breather Seal Rings
  • (1) Clamp
• (6) Cylinder Kits
  • (6) Engine Pistons
  • (6) Piston Ring Sets
    • (6) Intermediate Piston Rings
    • (6) Oil Piston Rings
    • (6) Top Piston Rings
  • (6) Piston Pins
  • (12) Piston Pin Retainers
  • (6) Cylinder Liners
  • (6) Crevice Seals
  • (6) Piston Cooling Jet Kits
    • (6) Cooling Tubes
    • (6) Bolts
    • (6) O-Rings
• (6) Main Bearings
• (1) Main Thrust Bearing
• (6) Rod Bearings
• (1) Cylinder Head Gasket Set
  • (1) Breather Seal Ring
  • (1) Breather Seal Ring
  • (2) Seals
  • (1) O-Ring
  • (1) Turbo Mounting Gasket
  • (4) Turbo Mounting Nuts
  • (1) Seal Ring
  • (6) Injector Seal Kits
    • (6) Lower Injector Seal Rings
    • (6) Upper Injector Seal Rings
    • (6) Seals
  • (1) High Pressure Oil Kit
    • (6) Inlet Injector Seal Rings
    • (1) Seal Ring
    • (6) Inlet Injector Back Up Rings
    • (6) Inlet Injector Back Up Rings
    • (6) Inlet Injector Back Up Rings
  • (1) My 2004-2006 Head Gasket
  • (1) Exhaust Manifold Gasket
  • (1) Intake Manifold Gasket
  • (1) O-Ring Seal
  • (1) Breather Seal Ring

Warranty:

2-Year Parts and Labor Warranty

OEM Cross-Reference:

• 1878623
• 1878623C91
• 1878623C92
• 1878623C93
• 1878623C94
• 1878623C95
• 1878623C96
• 1878623C97
• 1878623C98
• 1878623C99
• 1889239
• 1889239C91
• 1889239C92
• 1889239C93
• 1889239C94
• 1889239C95
• 1889239C96
• 1889239C97
• 1889239C98
• 1889239C99
• 2513984
• 2513984C91
• 2513984C92
• 2516361C91
• 2516371
• 2516371C91
• 2516371C92
• 466119-001
• 466119-006
• 466119001
• 466119006
• M-1889239C99
• M-2516361C91
• M-2516371C92
• M1889239C99
• M2516361C91
• M2516371C92
