Interstate-McBee Kit - Inframe - M-5473069

INFRAME KIT

(0) Reviews: Write first review
M-5473069
Shipping: Air Freight Shipping will not be accepted for this product
Pricing: $3,322.38

Customize Your Item

- Select Main Bearing Size -
- Select Rod Bearing Size -
Qty:
FREE SHIPPING for orders above $2500

Description

The M-5473069 In-Frame Rebuild Kit is a complete engine overhaul solution designed for Cummins ISX15 and QSX15 engines equipped with 152MM Advanced Plateau Relief (APR) liners. This kit allows for full restoration of engine performance—including improved compression, reduced oil consumption, and extended engine life—without removing the engine from the chassis.

Manufactured to OEM specifications in ISO 9001:2015-certified facilities, the kit includes all major internal engine components needed for reliable in-frame service, making it ideal for fleet maintenance and vocational operations.

Key Features

  • Designed for Cummins ISX15 / QSX15 with 152MM APR liners

  • Compatible with newer CM2250 / CM2350 engine platforms

  • Includes: Pistons, liners, rings, rod bearings, main bearings, seals, and complete gasket set

  • Engineered for high-load, long-haul, and vocational use

  • Manufactured in ISO 9001:2015-certified U.S. facilities

  • 2-year, unlimited-mileage warranty (Interstate-McBee or equivalent)



Item Number: Part Description: Qty:
M-4376168 Kit - Cylinder Liner 6
M-2882023 Kit - Piston 6
M-4376104 Gasket Set - Upper Engine 1
M-4089405 Bearing-Connecting Rod- ISX 6
M-5406110 Set - Main Bearing 1
M-3678756 Seal - O-Ring 1
M-3820320 Plunger - Bypass Valve 1
M-4026684 Gasket - Oil Pan 1
MCB2882087 Bearing - Connecting Rod 6
M-4318947 Thermostat 1

Cross-Reference

4376172 5473069 IF5473069 M-5473069 ISX152-017 5405988

Key Components

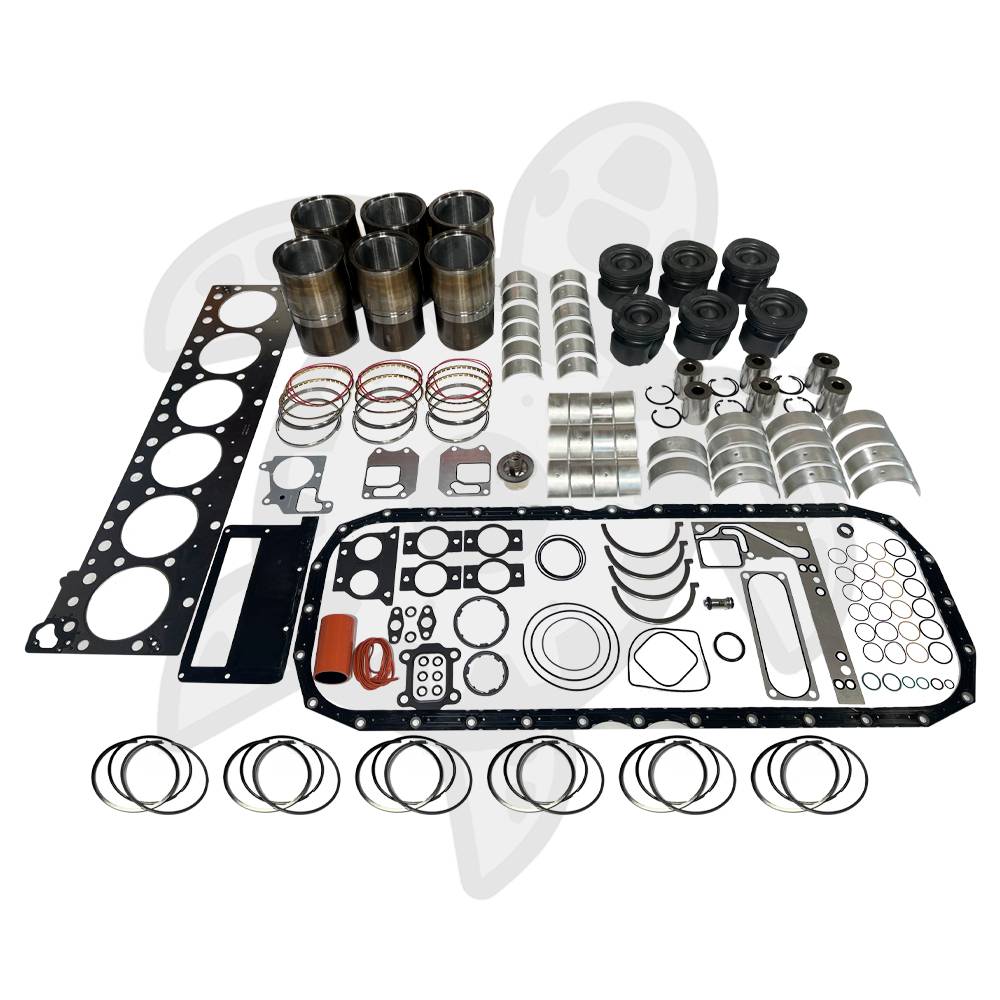

Kit Contents
6 x Cylinder Kits (Pistons, liners, piston rings, wrist pins, retainers)

1 x Upper Gasket Set

1 x Lower Gasket Set

1 x Rod Bearing Set (12 bearings)

1 x Main Bearing Set (7 bearings)

1 x Thrust Washer Set

1 x Oil Pan Gasket

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 220.0 lbs.
  • W13.0000” x H13.5000” x L43.5000”
  • FREE SHIPPING for orders above $2500
  • Air Freight Shipping will not be accepted for this product
