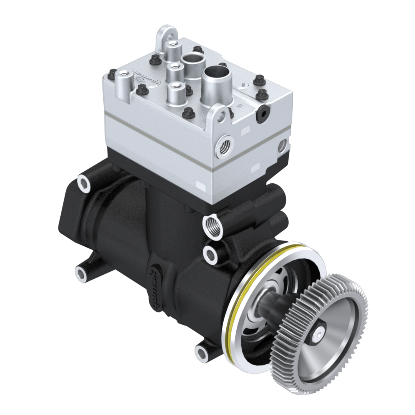

EXP.700.0027 | Air Compressor Wabco Type

The 700.0027 Air Compressor is a high-quality Wabco-type replacement designed to deliver reliable and consistent air supply for heavy-duty truck braking and pneumatic systems. Engineered for durability, this compressor ensures optimal performance even in demanding operating conditions. Built with precision components for smooth operation, it helps maintain stable air pressure, reduces downtime, and supports overall system efficiency.

• Calculated Volume (dm³) 18.36
• Cooling - Water
• Crankshaft thread
  M20 x 1.5
• Lubrication
  Lubrication supplied from engine
• Max. operating pressure
  12.5 bar
• Mounting
  Side mounting
• Operating speed
  3000 (1/min)
• Piston diameter
  100.0 mm
• Piston stroke
  56 mm
• Port thread 0
  Ø 30 mm
• Port thread 2
  Ø 20 H8
• Port thread 4
  M14 x 1.5
• Port thread 8.1
  M22 x 1.5
• Port thread 9
  M16 x 1.5
• Port thread 9.1
  M16 x 1.5
• Port thread 9.2
  M16 x 1.5
• Product category
  Device
• Swept volume (cm³)
  440 cm3
• Technical specification
  OE specification
• Temperature range
  -40°C to +105°C
