IPD CAT C15 ACERT Inframe Kit Low Compression 17:1 KIF9946/42 (SDP)

Engine Rebuild Kits

(0) Reviews: Write first review

SKU: KIF9946/42

Kit - Inframe LOW COMPRESSION ( 17:1 )

Shipping: Air Freight Shipping will not be accepted for this product

Was: $4,530.00

Sale: $4,400.00

Save: 3%

Save: $130.00

Customize Your Item

OPTIONAL: Enter your engine serial number
Our goal is to provide you with exactly the right part as quickly and concisely as possible. You can help us do our job faster and more accurately by including identifying information that will help our team verify the correct fitment.

Main Bearing Size

Select Main Bearing Size

- Select Main Bearing Size -

Rod Bearing Size

Select Rod Bearing Size

- Select Rod Bearing Size -

Qty:

Free Shipping!

Description
Cross-Reference
This Kit Contains
Details
Shipping
Reviews

Description

This is for converting a C15 Acert 18:1 compression ratio to 17:1 compression ratio. (Apply for SDP)

Most commonly used when you are taking a twin turbo C15 and converting it back to a single turbo engine. One Piece Steel piston

Key Features:

Low Compression 17:1 CR
Twin ACERT to Single Turbo Conversion
Complete Inframe Rebuild Kit

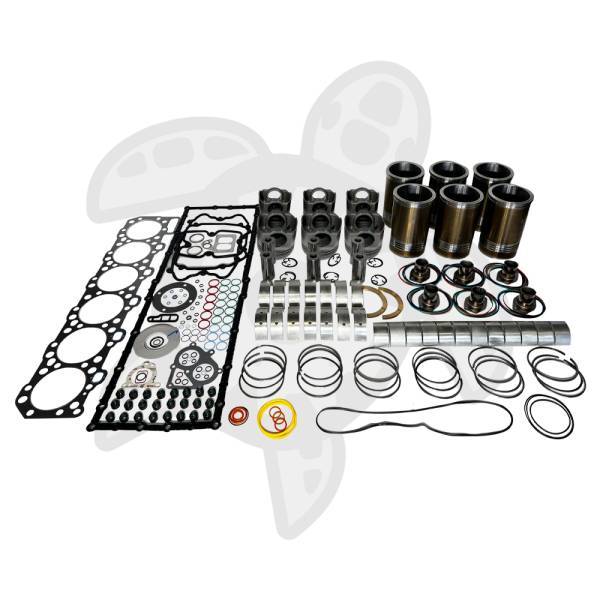

"Image may be for illustrative purposes only. The kit contents shown represent the actual parts included."

Cross-Reference

IPD:
- KIF9946/42 (no crevice seal design)
- KIF9946/42/CS (LINER WITH SEALS, CREVICE TYPE)

PAI:
- C15105-014 (no crevice seal design)

Interstate-McBee
- MCIF3569946SDP (no crevice seal design)

This Kit Contains

6 × Gasket Set, Single Cylinder Liner – 1183732

6 × Cylinder Liner 5.4 Bore – 1979322

12 × Retainer, Piston Pin – 2502940

2 × Thrust Plate – 2531752

7 × Main Bearing, STD (Diesel) – 3178766

6 × Piston, IPD Steel, Welded – 3569946

1 × Gasket Set, In-Frame 48 – C15012NLS

6 × Ring Set – C15RS5

6 × Con Rod Bearing STD – 2613450

6 × Piston Pin – 5245565

1 × Seal-Isolation – 1685248
